Multilayer zirconia blocks are widely used in dental restorations.
Compared with traditional single-layer zirconia, they provide a gradient in translucency and color, which helps achieve a more natural appearance.

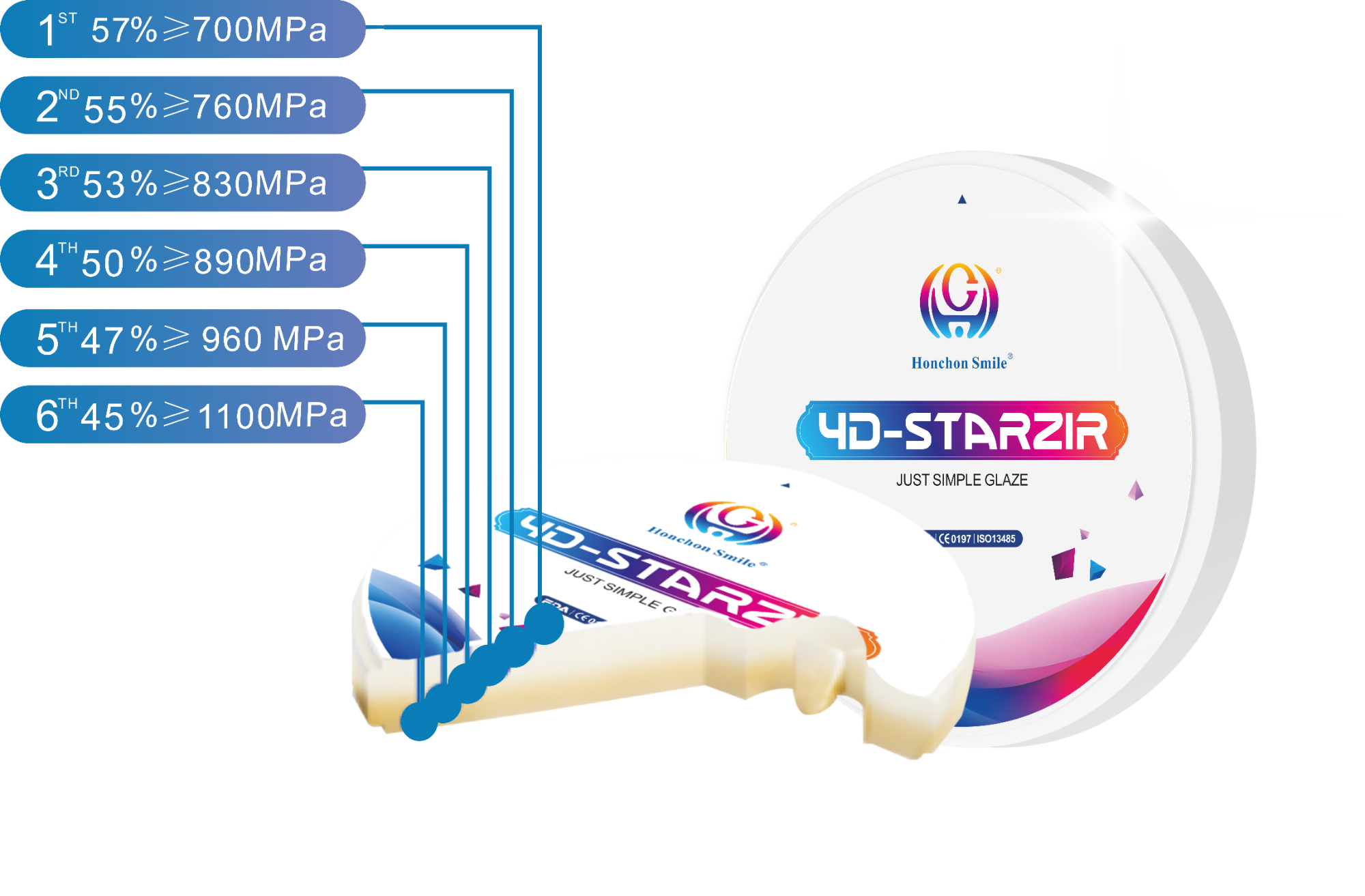

This gradient is designed to simulate natural teeth:
Incisal area: higher translucency
Middle layer: transition zone
Cervical area: higher chroma and strength
For single crowns, this structure usually works well.

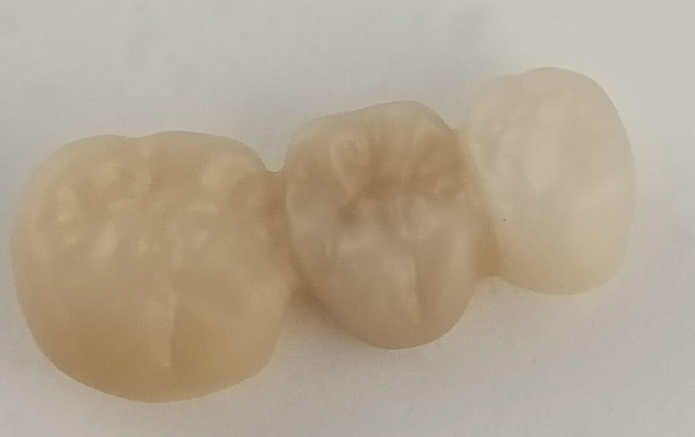

However, when fabricating multi-unit bridges, color inconsistency may appear between units.
In a typical 3-unit bridge, technicians may notice:
One unit appears lighter or more translucent
Another unit looks darker or more saturated
The middle unit may differ from both sides
This difference is often observed after sintering.
The color gradient in multilayer zirconia blocks is vertical (from top to bottom).
However, a bridge is arranged horizontally (from left to right).
When the bridge is positioned inside the disc:
One unit may be closer to the incisal layer
Another may be closer to the cervical layer
As a result, each unit is milled from a slightly different layer of the block.
This leads to visible color differences after sintering.
The height of each unit also affects the result.
For example:
A molar unit is higher
A premolar unit is lower
If the bridge is aligned at the base:
The taller unit spans multiple layers
The shorter unit may remain within a single layer
This can increase the difference in translucency and shade between units.
Bridge connectors are usually thicker than crown walls.
Thicker areas reduce light transmission
This may make the connector region appear darker
As a result, even if the material is the same, visual differences can occur between units.
Before sintering, color differences are not always obvious.
After sintering:
High-translucency areas become brighter
High-strength areas appear more opaque
The contrast between layers becomes more visible, which can amplify the difference between units.
In practice, the following situations are often involved:
The bridge is positioned without considering layer distribution
The same strategy as single crowns is applied to bridges
No adjustment is made in CAD/CAM software
The height of units is not taken into account
These factors can lead to inconsistent results.

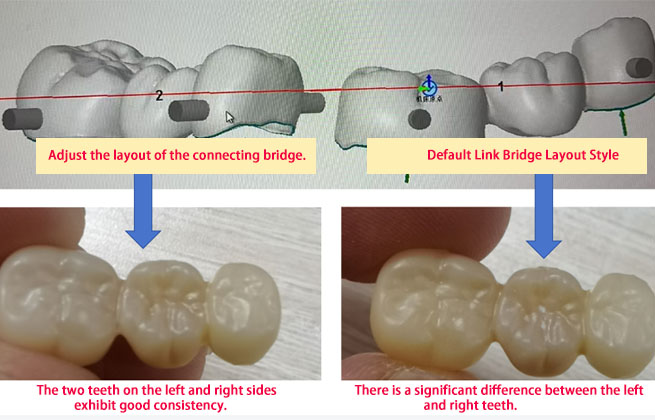

Try to keep all units within a similar layer range.
For example:
Align the incisal areas of all units at a similar height
Avoid placing one unit in the incisal layer and another in the cervical layer

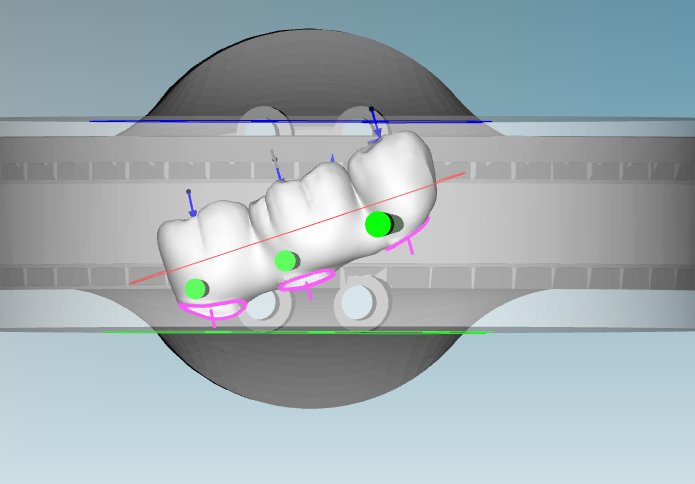

A small tilt of the bridge may help distribute the gradient more evenly across all units.
For a restoration height of 14.3 mm, an additional 0.5 mm should be reserved at both the upper and lower sides. A 16 mm zirconia block is therefore recommended.
Most CAD software provides positioning functions, such as:
“Position in blank”
Layer indication tools
These tools can help control the final result.
For anterior bridges or high aesthetic cases:
External staining or infiltration can be used
This allows better control of final shade
Color differences in multilayer zirconia bridges are mainly related to:
The vertical gradient structure of the material
The horizontal arrangement of bridge restorations
Positioning and design factors
This is a material characteristic combined with processing factors, rather than a defect of the zirconia itself.
Proper positioning and adjustment can significantly reduce the difference and improve consistency.
