Many dental laboratories encounter a confusing situation when milling zirconia restorations.
Some technicians report that a milling bur becomes worn after only 5 zirconia crowns, while other labs can mill 40–100 crowns or even more with the same type of bur.
In reality, this difference is very common in CAD/CAM dental milling. Tool life varies greatly depending on several technical factors including milling parameters, zirconia density, bur coating, machine condition, and dust removal efficiency.
Industry data shows that the average lifespan of zirconia milling burs is usually between 30 and 120 crowns per bur, depending on the milling conditions.
This means that if a bur fails after only a few units, there is usually a specific problem in the milling process.
Under normal conditions, dental milling burs have relatively predictable lifespans.
Typical ranges reported in the industry include:
| Material | Typical Bur Life |
|---|---|
| Zirconia | 80–120 crowns |
| Glass ceramic | 40–60 crowns |
| PMMA | 150–200 units |
These numbers depend on machine parameters and material hardness.
Some coated burs can last significantly longer. For example:
DLC coated burs: 90–130 zirconia crowns
Diamond-coated burs: up to 400–500 crowns in ideal conditions
This explains why some laboratories report very long tool life while others experience rapid wear.
Incorrect milling parameters are one of the most frequent reasons for short bur life.
Typical CAD/CAM milling machines operate at:
Spindle speed: 60,000 – 100,000 RPM
Crown milling time: 10–20 minutes per zirconia crown
If the feed rate is too aggressive or the toolpath is not optimized, cutting forces increase dramatically.
For example:
| Parameter | Normal Range |
|---|---|
| Spindle speed | 60k–100k RPM |
| Feed rate | 2–6 mm/s |
| Milling time | 10–20 minutes |
If feed rate increases too much, bur wear can increase 2–3 times faster.
Not all zirconia blocks mill the same way.
The hardness of pre-sintered zirconia depends on:
powder particle size
pressing method (CIP vs dry pressing)
pre-sintering temperature
Denser blocks increase cutting resistance, which accelerates tool wear.
For example, some harder zirconia brands can reduce bur life from 130 crowns to around 75–100 crowns.
Bur coating is one of the biggest factors affecting durability.
Common coatings used in dental zirconia milling include:
| Coating | Typical Performance |
|---|---|
| DLC | 90–130 crowns |
| DC (diamond coating) | 400–500 crowns |
| CrN | mainly PMMA |
Diamond-coated burs can last 2–4 times longer than standard burs because the coating reduces friction and heat during cutting.
During dry milling of zirconia, large amounts of zirconia powder are generated.
If the dust extraction system is weak:
powder accumulates around the bur
friction increases
cutting temperature rises
This can dramatically shorten tool life.
Many laboratories notice that after cleaning the suction system and filters, bur lifespan increases significantly.
Even small machine issues can affect tool life.
Examples include:
spindle vibration
worn tool holders
misalignment of the milling axis
These problems cause uneven cutting forces, which can chip the bur tip.
Regular calibration and maintenance help maintain consistent milling performance.
In one typical scenario:
| Lab A | Lab B |
|---|---|
| Aggressive feed rate | Correct feed rate |
| Poor dust extraction | Clean suction system |
| Low-quality burs | coated burs |
Result:
Lab A: 5–10 crowns per bur
Lab B: 60–100 crowns per bur
This difference is often not caused by the bur alone but by the entire milling system.
A dental laboratory using a 5-axis milling machine reported that their zirconia milling bur became worn after milling only five crowns.
After checking the milling process, several issues were identified.
The spindle speed was set close to 100,000 RPM, while the feed rate was relatively aggressive. In addition, the zirconia blocks used by the laboratory had relatively high green density before sintering.
During milling, the cutting resistance was higher than normal, which caused rapid wear on the bur coating.
After adjusting the milling parameters and reducing the feed rate slightly, the same type of bur was able to mill around 35 crowns before replacement.
This case shows that milling parameters can significantly influence tool life.
Another laboratory reported that their milling burs frequently became dull after 8–10 zirconia crowns.
The milling parameters appeared normal, but technicians noticed that a large amount of zirconia powder accumulated inside the milling chamber.
The dust extraction filter had not been cleaned for a long time, which reduced suction efficiency. As a result, zirconia powder accumulated around the bur during milling.
This caused higher friction and temperature during cutting.
After cleaning the dust collection system and replacing the filter, the average bur life increased to approximately 50 crowns per bur.

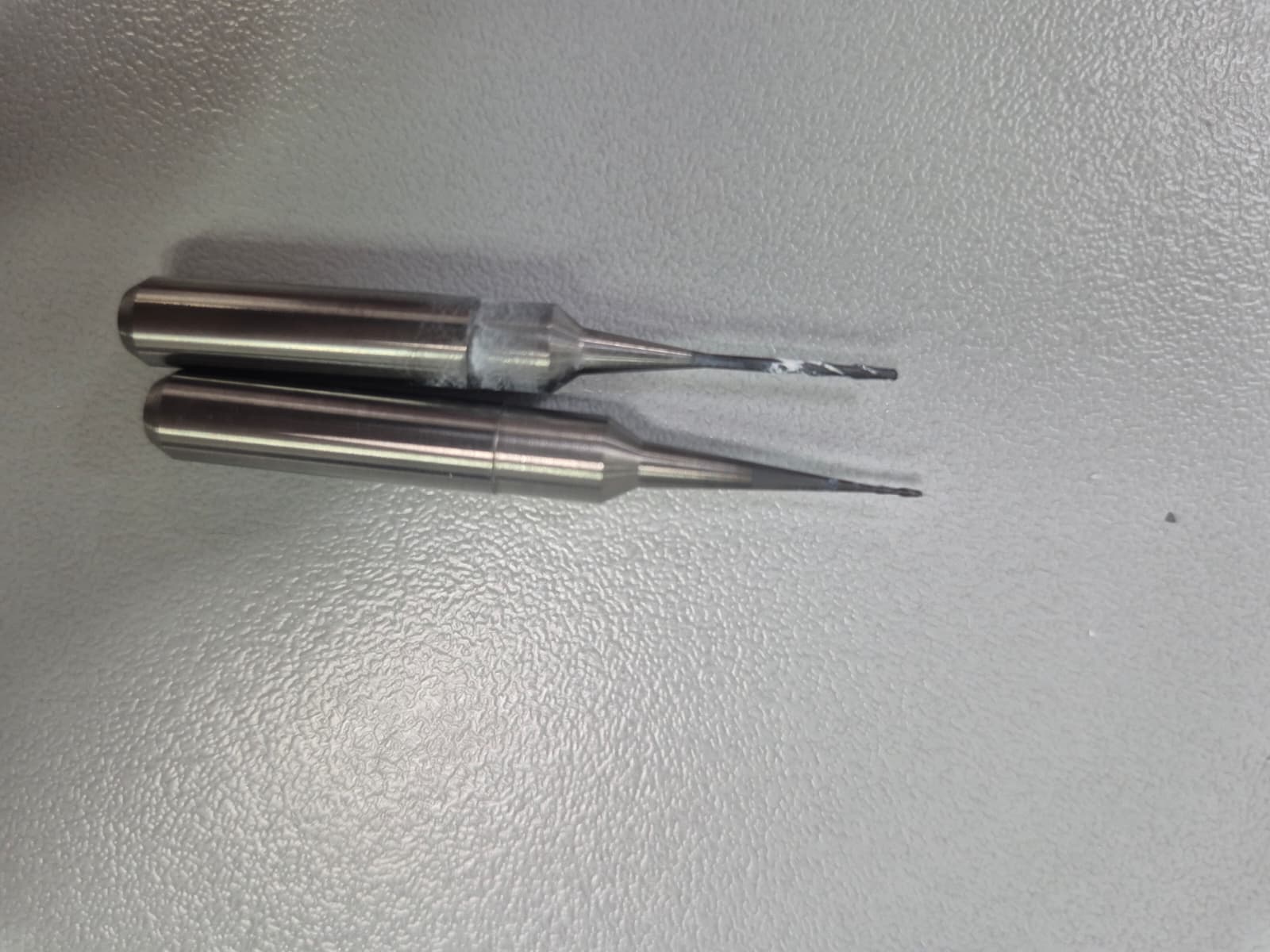

In another situation, a dental lab found that their milling burs sometimes broke or chipped unexpectedly after milling 10–15 restorations.
After inspection, technicians discovered that the tool holder inside the milling machine had slight wear. This caused minor vibration during high-speed milling.
Even small vibrations can create uneven cutting forces on the bur tip.
After replacing the worn tool holder and recalibrating the spindle, the bur life increased to about 60–70 zirconia crowns.
Some dental laboratories report much longer bur life when milling conditions are stable.
For example, one laboratory using a well-maintained milling machine, optimized milling parameters, and consistent zirconia blocks reported that their coated milling burs could mill approximately 80–100 zirconia crowns before replacement.
Their workflow included:
regular machine maintenance
proper dust extraction
consistent zirconia materials
correct milling strategies
Under these conditions, tool wear was much slower and milling performance remained stable.
Another factor that laboratories sometimes overlook is bur diameter.
Smaller burs, such as 0.6 mm tools, are mainly used for fine details and typically wear faster.
Typical observations in dental labs include:
| Bur Diameter | Typical Usage |
|---|---|
| 0.6 mm | 20–40 crowns |
| 1.0 mm | 50–80 crowns |
| 2.0 mm | 80–120 crowns |
This is because smaller tools experience higher stress during cutting.
These real laboratory cases show that bur lifespan is rarely determined by one factor alone.
Instead, it is influenced by a combination of conditions, including:
milling parameters
zirconia block density
machine stability
dust extraction efficiency
bur coating technology
bur diameter
By optimizing these factors, dental laboratories can significantly improve milling efficiency and reduce tool consumption.
The lifespan of dental milling burs varies widely depending on milling conditions.
In general:
30–120 crowns per bur is the common range for zirconia milling.
High-quality coatings and optimized parameters can significantly extend tool life.
When a bur fails after only a few crowns, the cause is usually related to milling parameters, machine condition, or material hardness rather than the bur itself.
By optimizing these factors, dental laboratories can greatly improve milling efficiency and reduce tool consumption.
