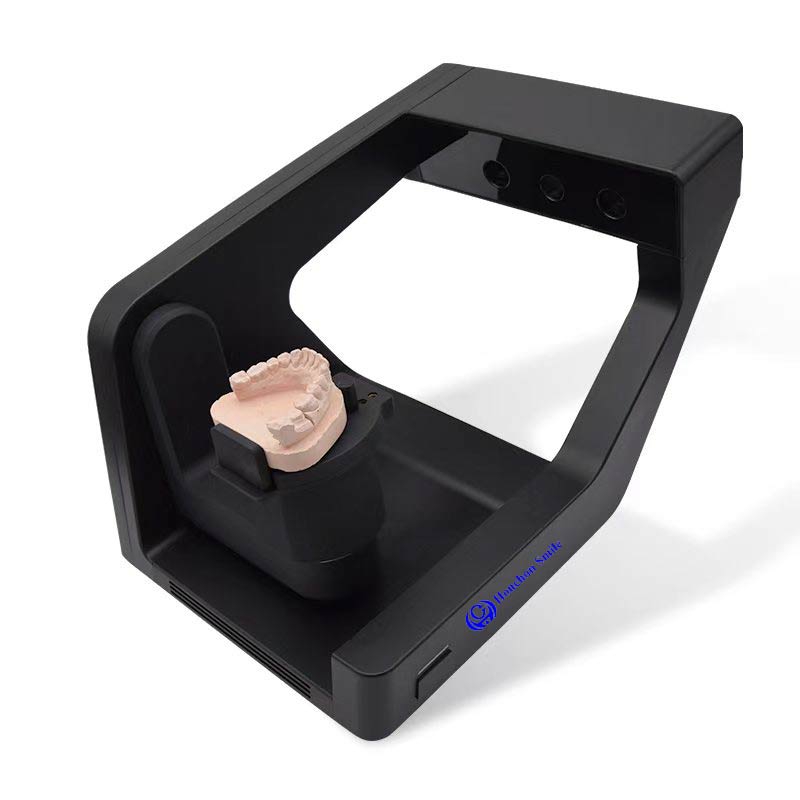

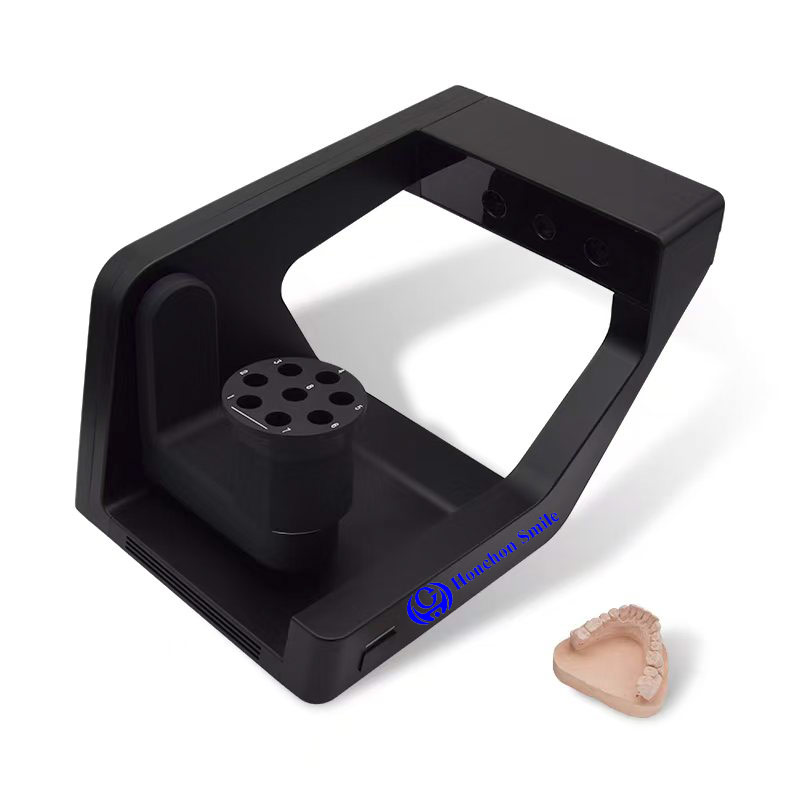

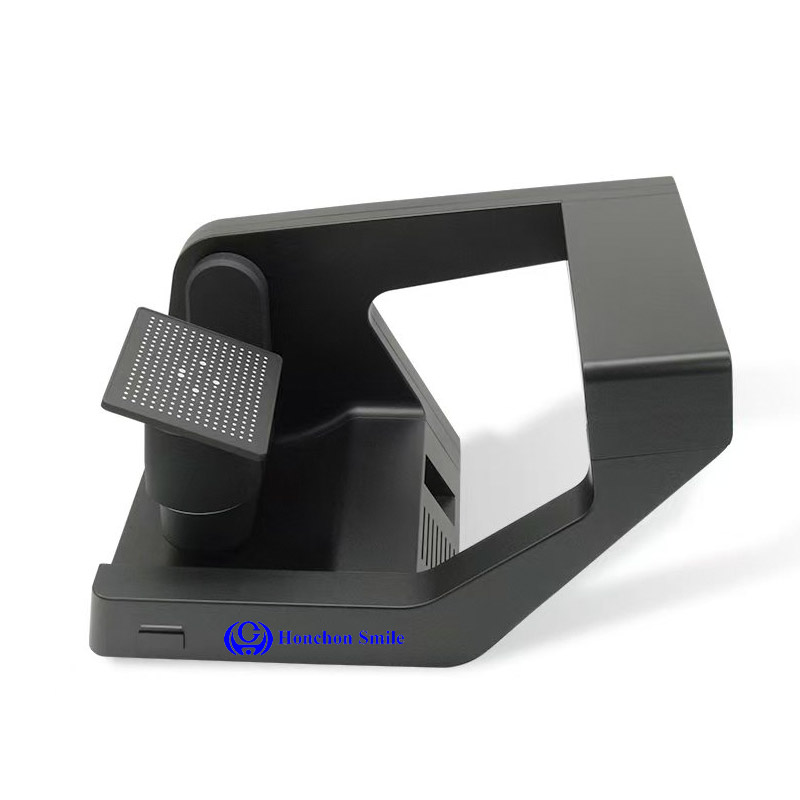

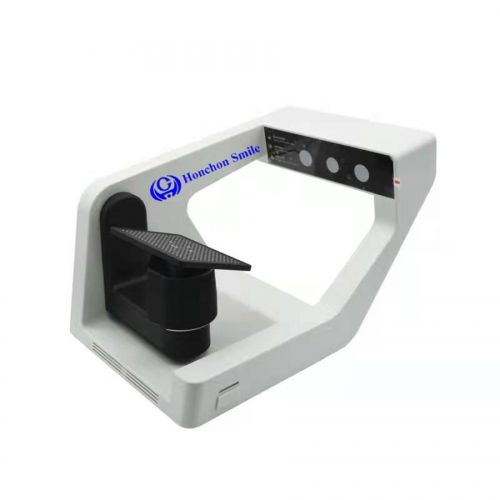

High-precision 3-megapixel dental laboratory scanner

Item No.: 3
Dental lab scanner offering fast, accurate 3D scans with 10-micron precision, open system STL file support, and texture scanning for enhanced workflow efficiency in dental applications
Description

This dental lab scanner combines modern technology with user-friendly features, providing fast and accurate scanning for various dental applications. Designed to improve workflow efficiency and deliver consistent scan results, it offers:

  • Superfast Scanning: With high-quality hardware and optimized software, you can scan a full arch in approximately 20 seconds.
  • High Accuracy: Achieves an accuracy of 10 microns in accordance with ISO 12836 standards, suitable for detailed restorations.
  • Open System: The open system allows for file imports and exports in STL format, providing flexibility in working with different software platforms.
  • Texture Scanning: The texture scanning feature helps technicians better understand the doctor’s design intentions, improving the overall quality of the final product.
  • Workflow Optimization: Equipped with a fast scan engine and efficient software algorithms, the scanner helps speed up processes in the lab, improving productivity without compromising on precision

Technical Data

General +

Fields of application: Digital Scanning

Indications: Model, Die Scan, Articulator, Impression, Implant

Base System +

Data Format: STL, PLY

Port: USB 3.0

Output Format: STL, PLY

Camera Resolution: 2 x 3.0MP

Related Software: EXOCAD

Precise Scanning +

Scan Area: 150 mm * 100 mm * 90 mm

Accuracy: ≤ 10 μm

Processing Modes +

Scan Principle: Contactless Scanning

Lighting: HCE-DS-300 Uses Blue Light

Scan Time +

Scan Speed: 5 seconds for occlusal relationship

20 seconds for scanning a full arch

Double-sided impression: 70 seconds

Approvals +

All models: CE, VDE

North America model: UL, FCC

Dimensions & Weights +

Dimensions (W/D/H): 530x650x750mm

Weight: 9 kg

Scope of Delivery +

HCE-DS-300 Scanner, USB Cable, Power Cable, Marble Calibration Board, Heel Block, 12-Hole-Dies Plate, Scan Plate, Blu Tack, Fixed Plate, Impression Fixture, 3-Hole-Die Disc
