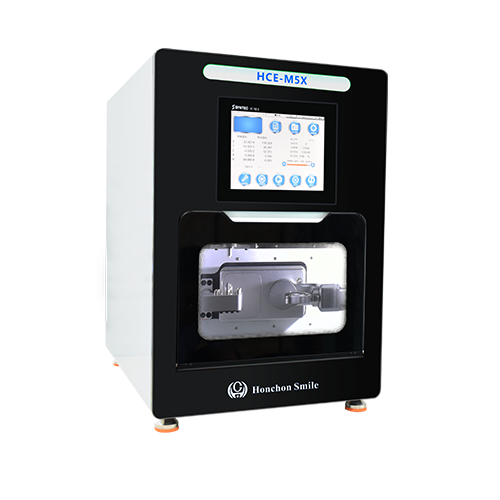

The latest product of Changsha honchon Technology Co., Ltd., a spindle-linked open dental engraving and milling machine, has high machine precision, high material utilization, and high customer praise.
After years of market research, Changsha honchon Technology Co., Ltd. has launched this five-axis linkage engraving and milling machine specially built for dental clinics. After 2 years of global market testing, our engraving and milling machine has been well received by customers. Now We are grandly launching this machine. This machine is famous for its high-precision milling and is very cost-effective. Welcome everyone to contact us!
Advantage 1. Five-axis linkage, can engrave and mill zirconia, PMMA ,WAX
2. Seven optional milling burs of different sizes

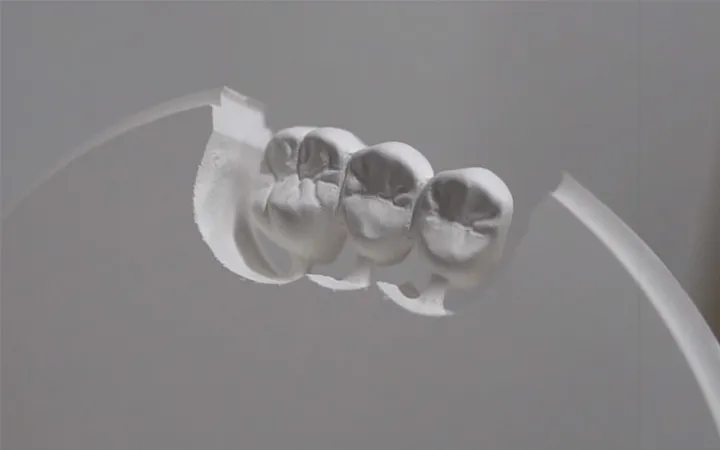

3. The front teeth can be carved and milled vertically to achieve a more beautiful appearance.
4. Accurate precision, enabling ultra-high utilization of zirconium blocks

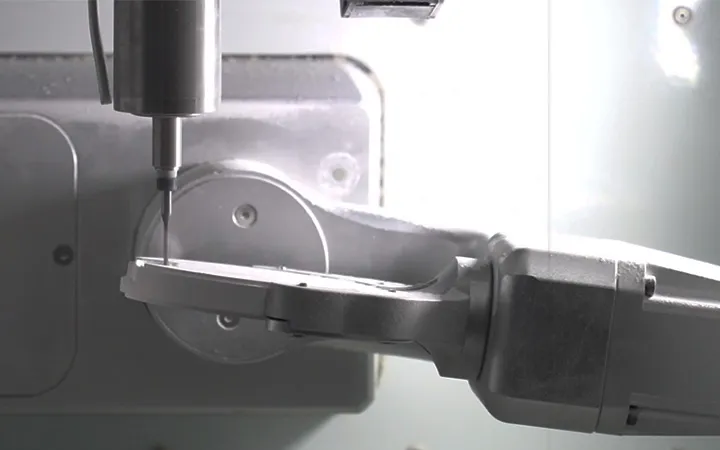

Large B-axis rotation B-axis rotation angles up to +35°.-91°.solarge angle implants can be processed.

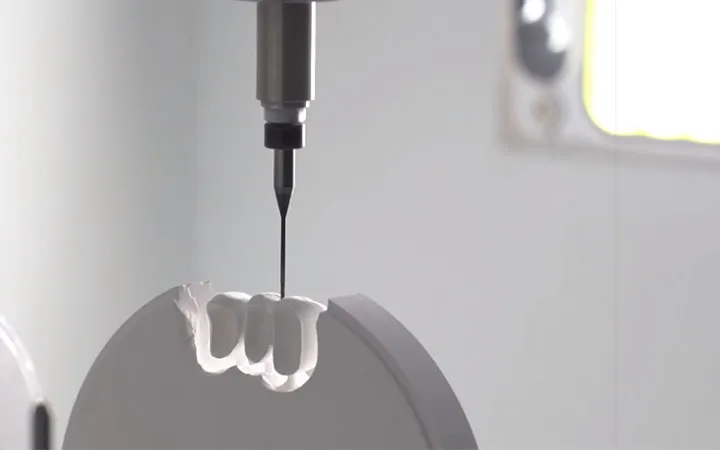

90° Vertical Milling The 90°Vertical Milling is good for millingof the anterior and allows for a finetexturing of the denture, providing thecustomer with a more perfect result.

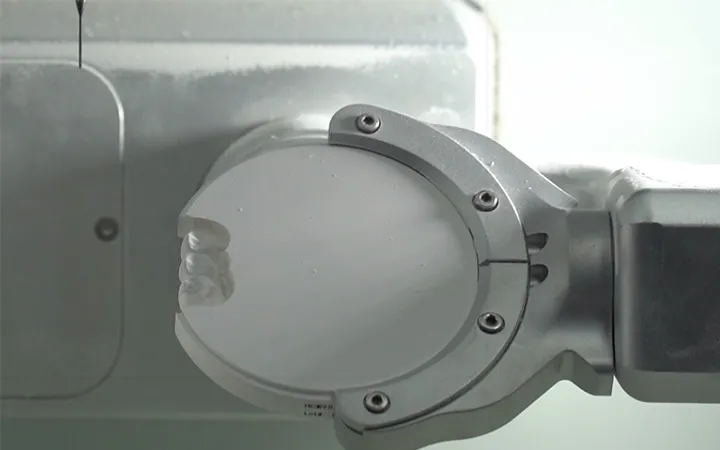

20% increased in material utilisation The C-Clamp Adapter allowing the use ofmaterial edges and a 20% increase inmaterial utilisation.
Resume when interrupted
In case of an unexpected situation,processing can be automatically resumedfrom the last
interrupted step, avoidingduplication of work andimprovingprocessing efficiency.
Construction: Machine bed made of solid cast aluminum body
Housing: Sheet steel housing, white high-gloss lacquer finish
Number of axes: 5
Linear axes X-Y-Z-axis
Ground precision guides made of high-alloyed steel. Precision of machining ± 0.01mm
Rotary axis A-axis: Rotation angle 360°, infinite
Rotary axis B-axis: Precision ball screw with rotary transmission. Rotation angle: +35° -90°. With the highest angular precision
Lighting: RGB LED lighting with status display in the working chamber
Operating temperature: Between 10℃ and 35℃
Air moisture: Max. 80% (relative), non-condensing
Rated Working Pressure: 6.0-7.5 bar (without water, oil-free)
Power: 220-230 volts. 800 watts
High-frequency spindle, synchronous with pneumatic tool clamping
Sealing air to prevent debris from entering
Speed: Up to 60,000 rpm
Power: Peak power (Pmax): 1500 watts. Nominal power: 800 watts
Collet: Stainless steel collet, C-clamp
Tool change
Tool magazine for 10 tools
All models: CE, VDE
North America model: UL, FCC
Product display
Frequently Asked Questions and Answers
Q: How many milling burs are equipped with your dental milling machine when it leaves the factory?
A: We will provide you with 7 needles, 4 of which are used for milling zirconia and the other 3 are used for milling PMMA.
Q. Does the dental milling machine automatically change milling burs?
A: Yes
Q: Does the dental milling machine automatically change discs?
A: No
Q: What is the motor technology of the dry dental milling machine and how many spindles does it have?
A: Our dry dental milling machine is 5-axis and equipped with a servo motor.
Q: What is the spindle power of your dental milling machine?
A: The power of our dental milling machine is 500w.
Q: What is the maximum tilt angle of the dental milling machine?
A: The maximum is 120 degrees.
Q What is the shank diameter of the milling burs in the dental milling machine?
A The diameter of the milling burs is 4.0mm
Q: What materials are milled by the dental milling machine? How much is it directly?
A: Zirconia disc, PMMA disc, wax disc, Peek disc. The diameter is 98MM.
Q:What is the rated power of the dental milling machine?
A: 800w
Q: How long does it take for a dental milling machine to mill a single crown?
A: The time for milling a single crown is 12 minutes.
Q: When the dental milling machine is working, does it have any requirements for air pressure?
A: Yes, the air pressure needs to be ≥6.0 bar, because the spindle runs at high speed, and sufficient air pressure is needed to blow air to cool the spindle.
Q: Does the dental milling machine need an air compressor?
A: Yes, and it must be oil-free, water-free dry air.
Q: What are the configuration requirements for the computer that matches the dental milling machine?
A: Processor (minimum): Intel Core i7 2,8GHz
Processor (recommended): Intel Core i7/i9 3,2GHz (non-AMD processor)
RAM memory (minimum): 16 GB
RAM memory (recommended): 32 GB
Graphics card: NVIDIA (we recommend the brand NVIDIA, other brands of graphics cards cannot be guaranteed. It is recommended to choose NVIDIA independent graphics card GTX2060 and above)
64-bit operating system
The computer system disk (C drive) is preferably a solid state drive
Apple computers are not allowed, and win8 and XP systems are also not allowed
The computer needs to have a USB3.0 interface and can connect to a scanner
